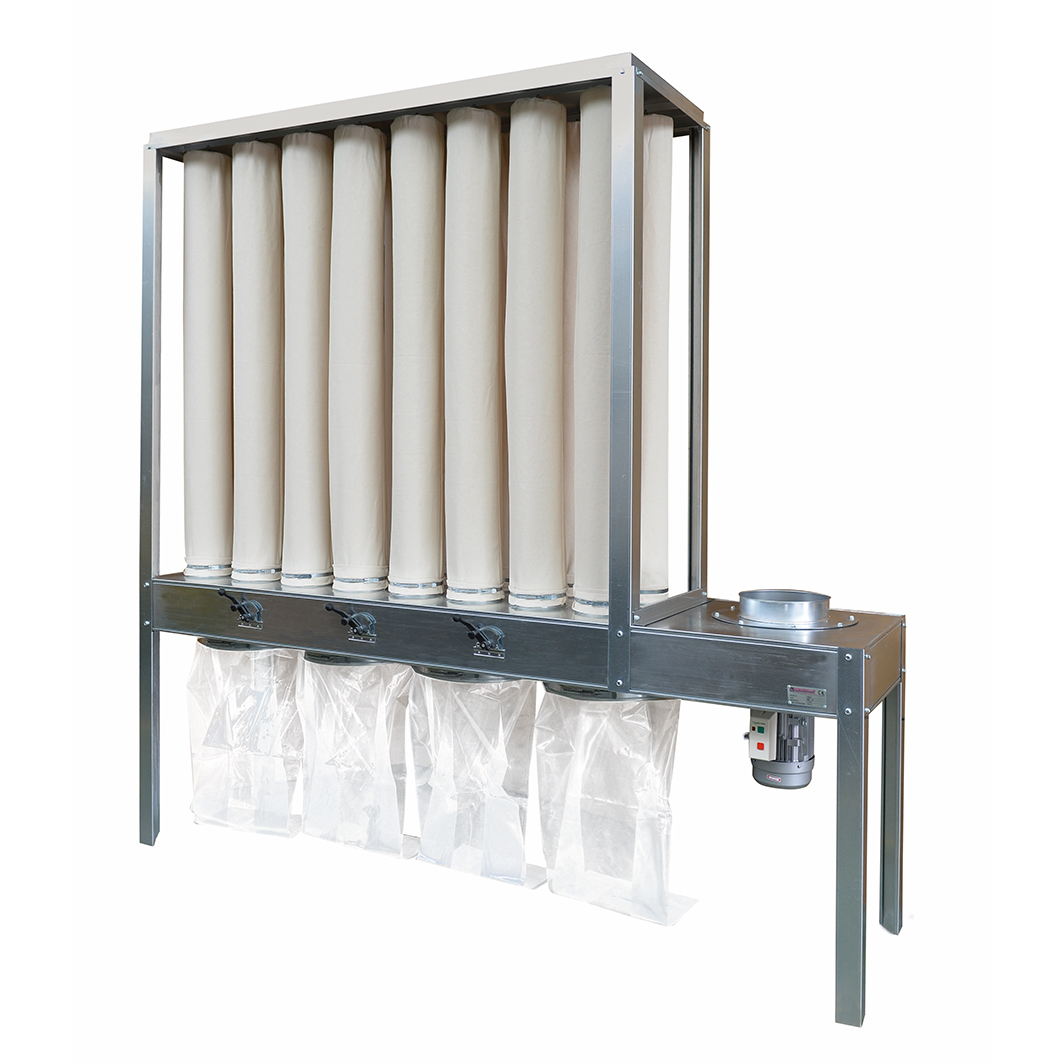

FIELD OF USE - The E.F. filter is suitable for extracting dust and chips produced by machining processes in the wood industry. Made of press-formed galvanised sheet metal and standard supplied with:
- Pure cotton filter fabric
- Sleeve fastening bands
- Hand-operated adjustment dampers
- Nylon collection bags
- Electric fan with a direct coupled motor
- Hardware for assembly
- On-Off switch
Optional accessory: - Polyester satin bags
- Upper cowling
The E.F. filter is shipped unassembled with assembly instructions, use and maintenance booklet and CE marking.

dBA = Measured at a distance of 1.5 m on four cardinal points - Tolerance on power 5% - Noise level tolerance +3% dBA

PETTINI reserves the right to make changes without prior notification.

   ART. 500





ART. 500/A ART. 500/B

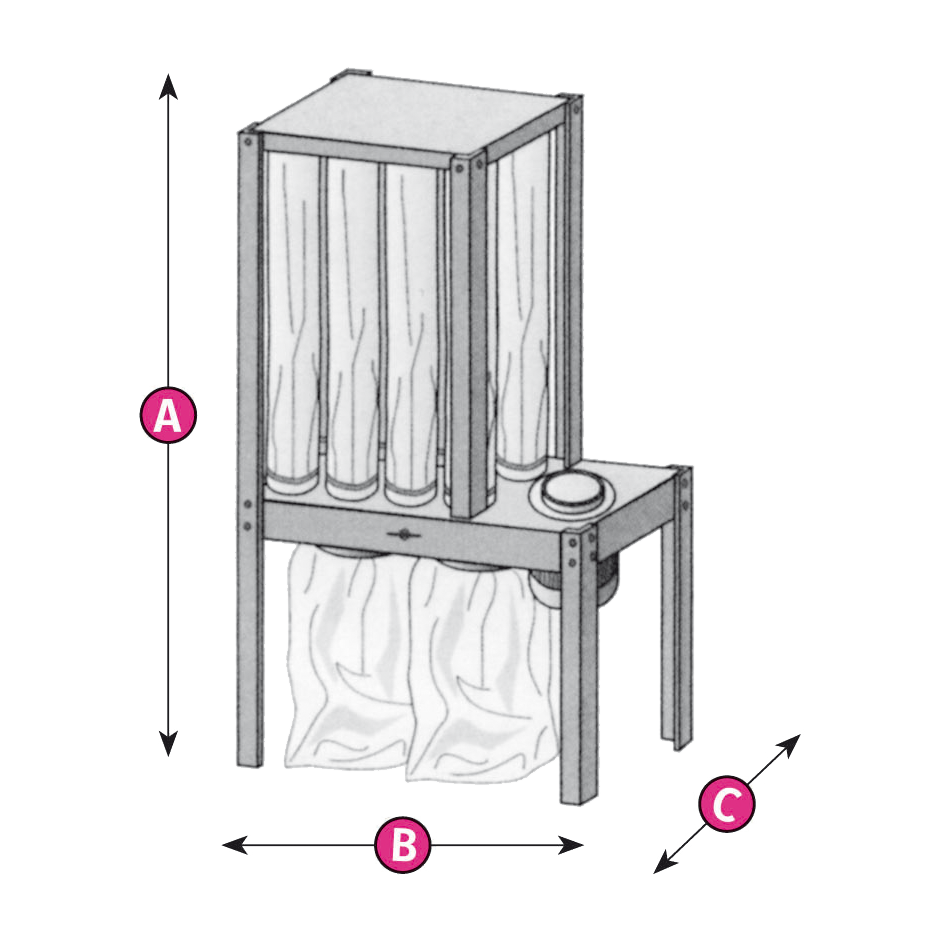

DIMENSIONS (mm) A 2950 B 1850 C 620 A 2950 B 1850 C 620

CAPACITY (m³/h) 2.000 2.500

POWER (HP) 2 3

SLEEVES (N) 8 8

NOISY (dBA) 78 79

ASPIRATION (Ø mm) 180 200



   ART. 501





ART. 501/A ART. 501/B

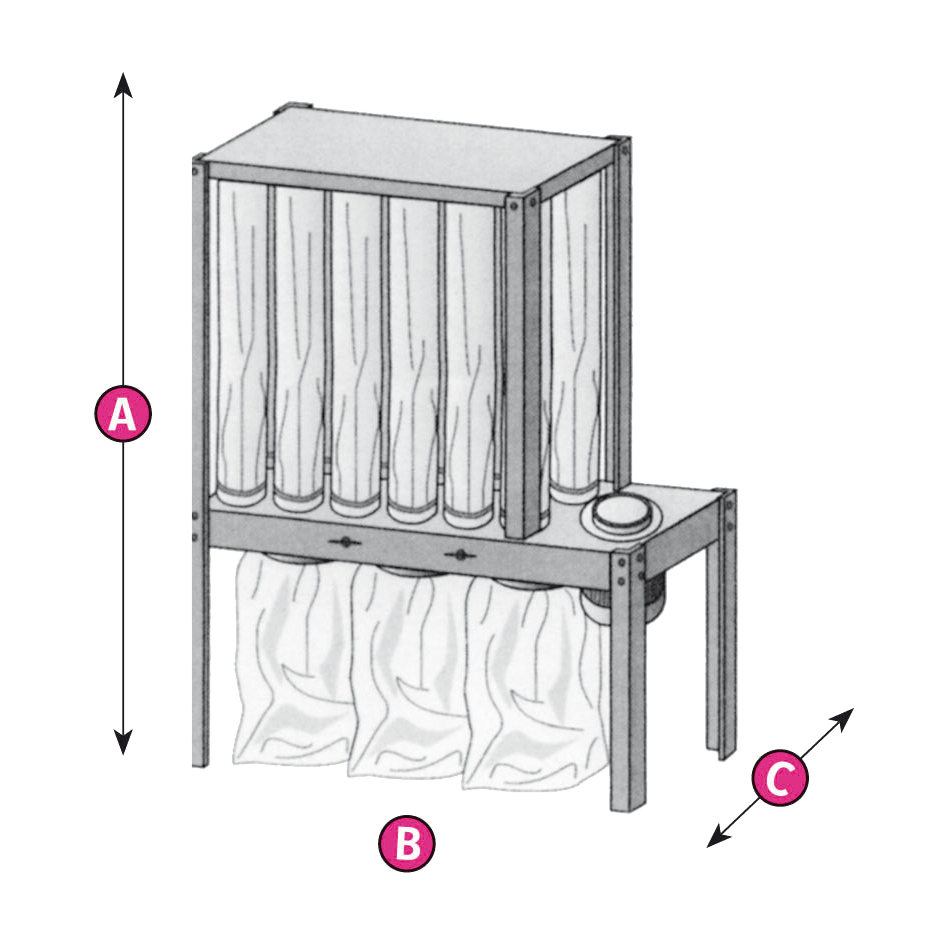

DIMENSIONS (mm) A 2950 B 2450 C 620 A 2950 B 2450 C 690

CAPACITY (m³/h) 2.500 3.000

POWER (HP) 3 4

SLEEVES (N) 12 12

NOISY (dBA) 79 80

ASPIRATION (Ø mm) 200 220



   ART. 502





ART. 502/A ART. 502/B ART. 502/C

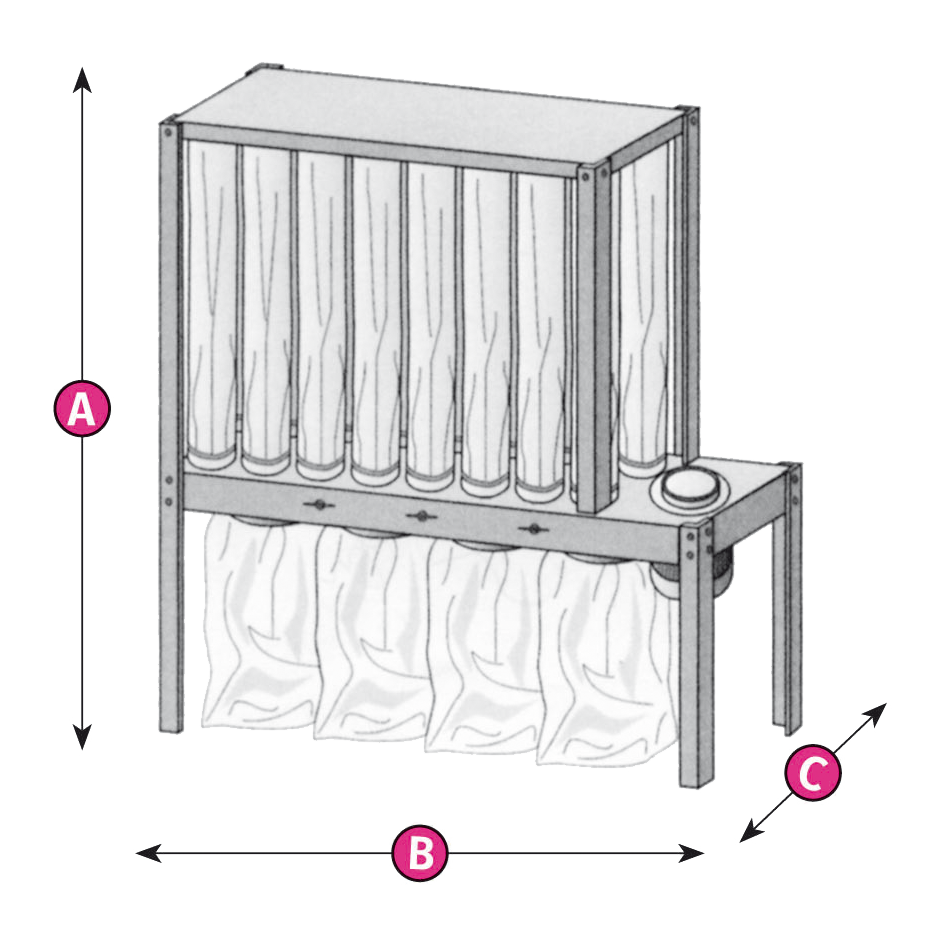

DIMENSIONS (mm) A 2950 B 2940 C 690 A 2950 B 2940 C 690 A 2950 B 2940 C 750

CAPACITY (m³/h) 3.000 4.000 5.000

POWER (HP) 4 5,5 7,5

SLEEVES (N) 16 16 16

NOISY (dBA) 80 81 84

ASPIRATION (Ø mm) 220 250 280
