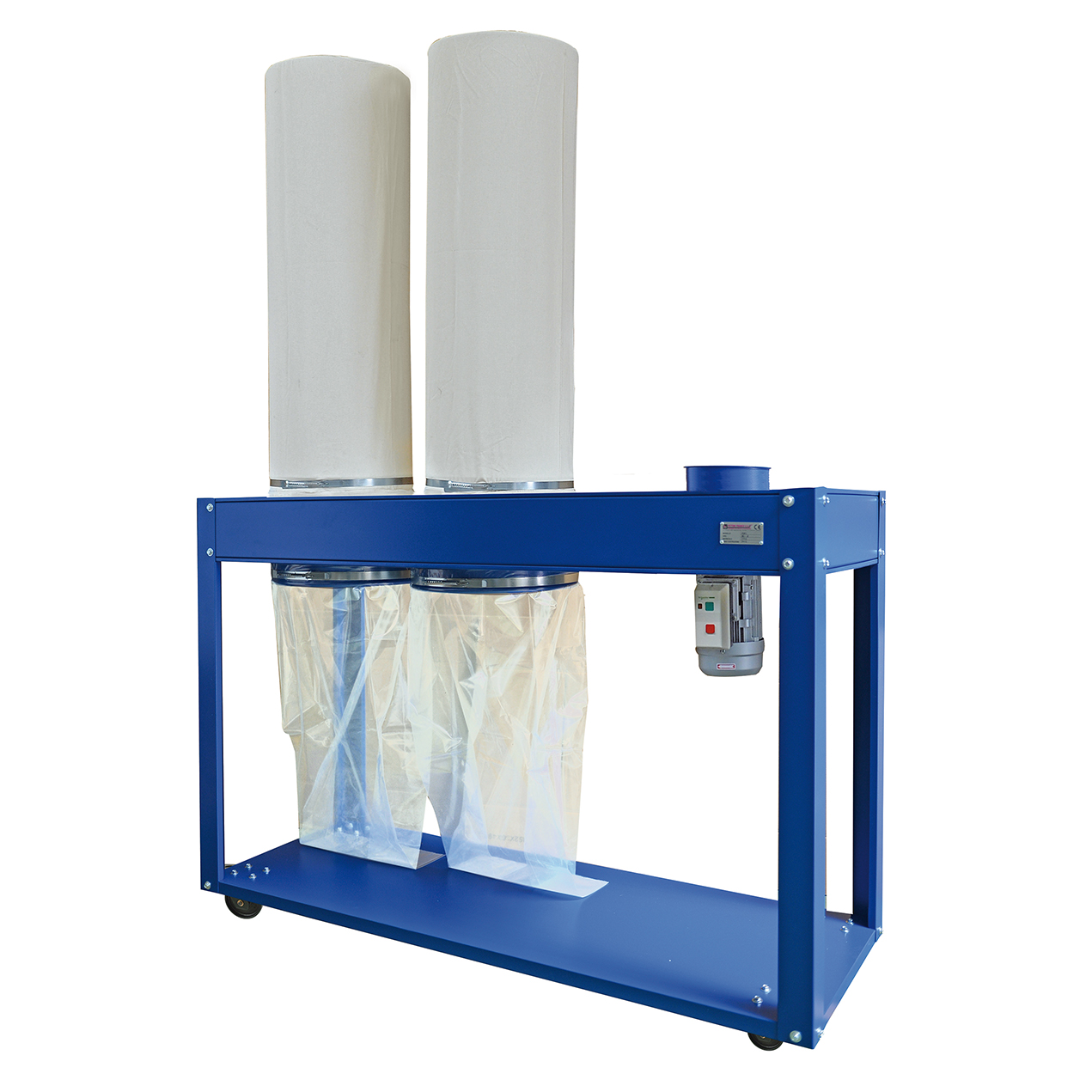

FIELD OF USE - The N.R. filter is suitable for extracting dust and chips produced by machining processes in the wood industry. Made of painted, press-formed, galvanised sheet metal, or unpainted on request, and standard supplied with:
- Pure cotton filter fabric
- Bag fastening bands
- Work surface on wheels
- Nylon collection bags
- Electric fan with a direct coupled motor
- Hardware for assembly
- On-Off switch
Optional accessory: - Polyester satin bags
The N.R. filter is shipped unassembled with assembly instructions, use and maintenance booklet and CE marking.

dBA = Measured at a distance of 1.5 m on four cardinal points - Tolerance on power 5% - Noise level tolerance +3% dBA

PETTINI reserves the right to make changes without prior notification.

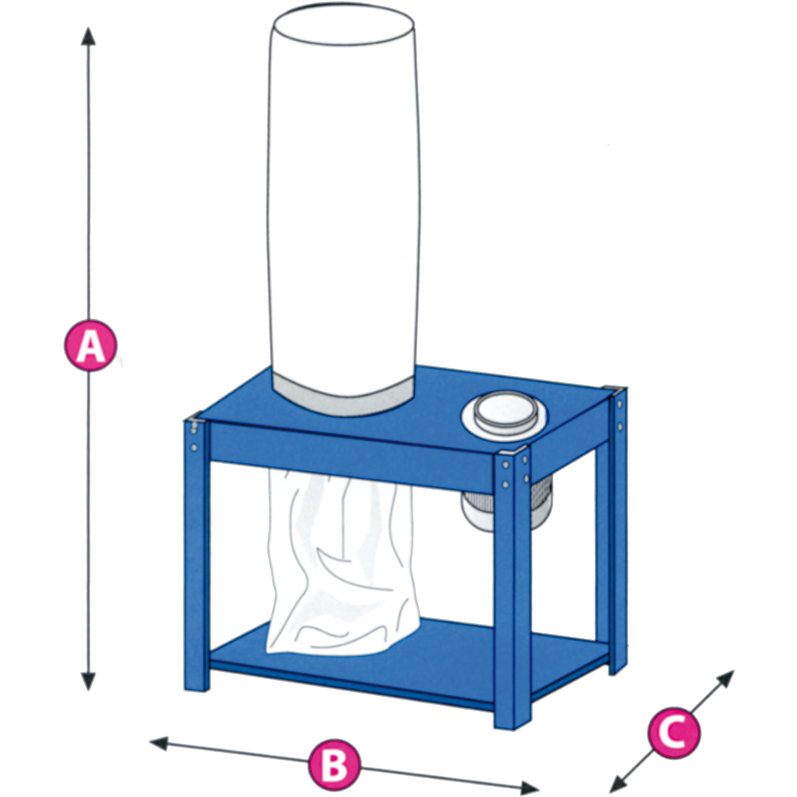

   ART. 540





ART.540 /A-/AZ ART.540 /B-/BZ

DIMENSIONS (mm) A 2800 B 1250 C 625 A 2800 B 1250 C 625

CAPACITY (m³/h) 1.000 2.000

POWER (HP) 1 2

COTTON BAGS (N) 1 1

NOISY (dBA) 77 78

ASPIRATION (Ø mm) 150 180

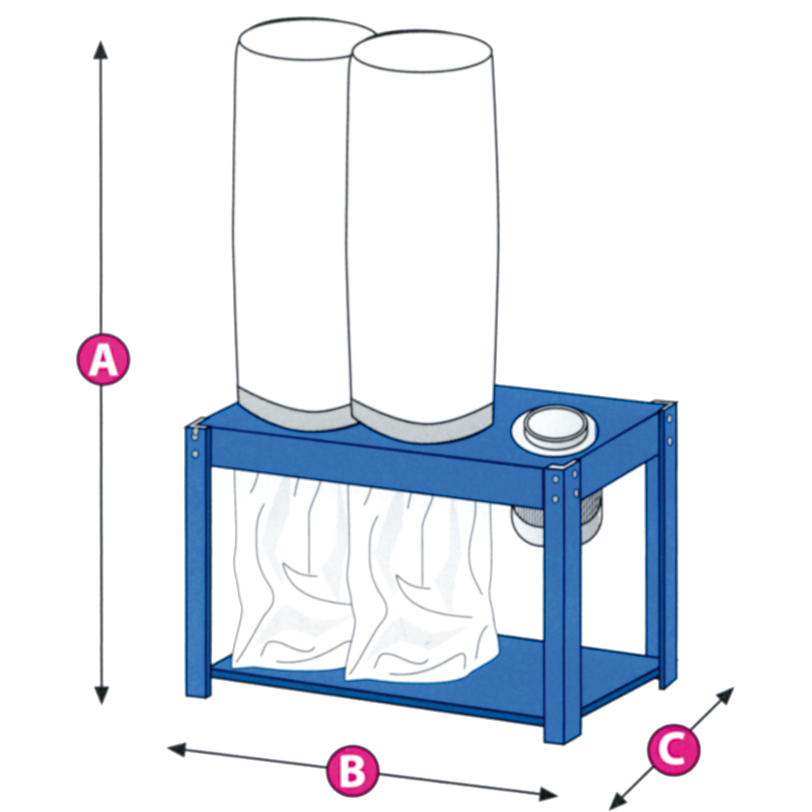

   ART. 541





ART.541 /A-/AZ ART.541 /B-/BZ

DIMENSIONS (mm) A 2800 B 1850 C 625 A 2800 B 1850 C 625

CAPACITY (m³/h) 2.000 2.500

POWER (HP) 2 3

COTTON BAGS (N) 2 2

NOISY (dBA) 78 79

ASPIRATION (Ø mm) 180 200

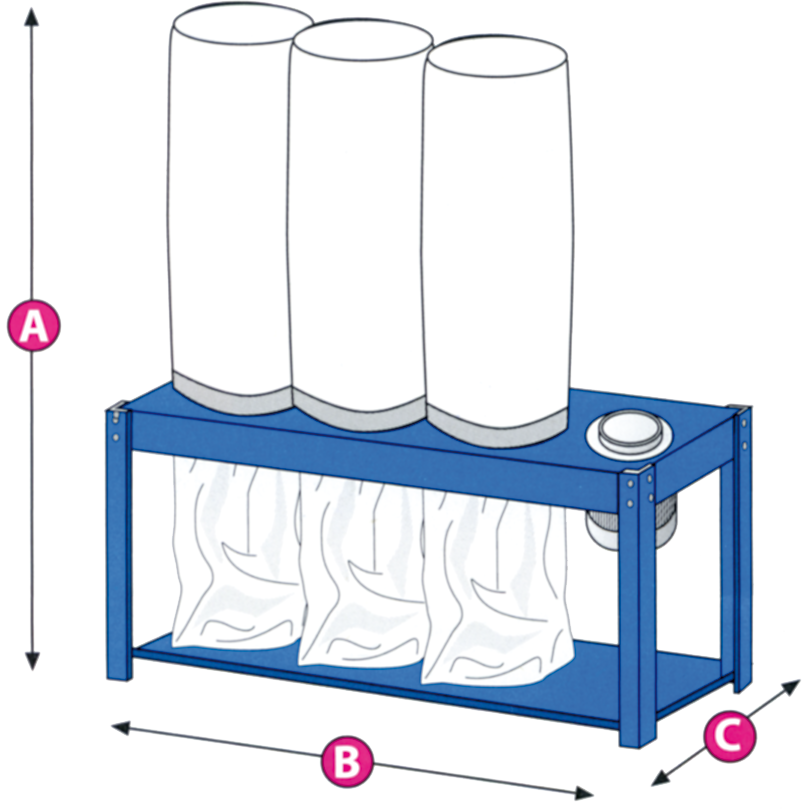

   ART. 542





ART.542 /A-/AZ ART.542 /B-/BZ ART.542 /C-CZ

DIMENSIONS (mm) A 2800 B 2450 C 625 A 2800 B 2450 C 690 A 2800 B 2450 C 690

CAPACITY (m³/h) 2.500 3.000 4.000

POWER (HP) 3 4 5,5

COTTON BAGS (N) 3 3 3

NOISY (dBA) 80 81 82

ASPIRATION (Ø mm) 200 220 250
